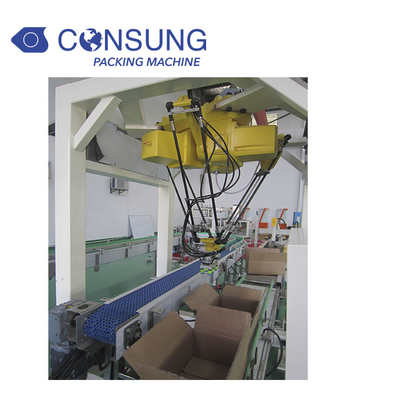

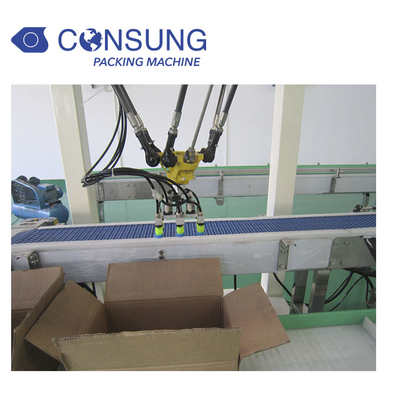

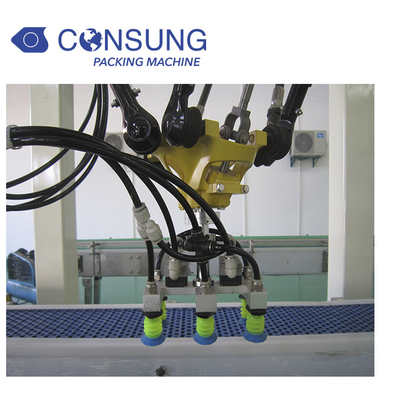

Robot Flexpicker Carton Packer

Product Item: ZX-R20
Category: Case Packer
Views: 3360
Quick changeover of packing patterns
Fast to start-up
Minimizes changeover
Simple maintenance
Description：Robot Flexpicker Carton Packer is suitable to pouch, bag, box, bottle,etc.

PRODUCT DESCRIPTION
VIDEO
INQUIRY US

Model	ZX-R20
Speed	4000times/hour
Product Conveyor Belt Height	800mm
Case Conveyor Belt Height	500mm
Air Pressure	0.6-0.7Mpa
Working Pressure	Cylinder 0.3Mpa
Air Consumption	600NL/min
Power	3.5KW
Voltage	380V 50/60HZ
Weight	550KG

Features

1. We choose flexpicker from ABB or Fanuc, or other famous brand, which can make sure fast picking and flexible

2. It can connect with case erector and case sealer as one production line.

3. Different flexpicker mode, different capacity

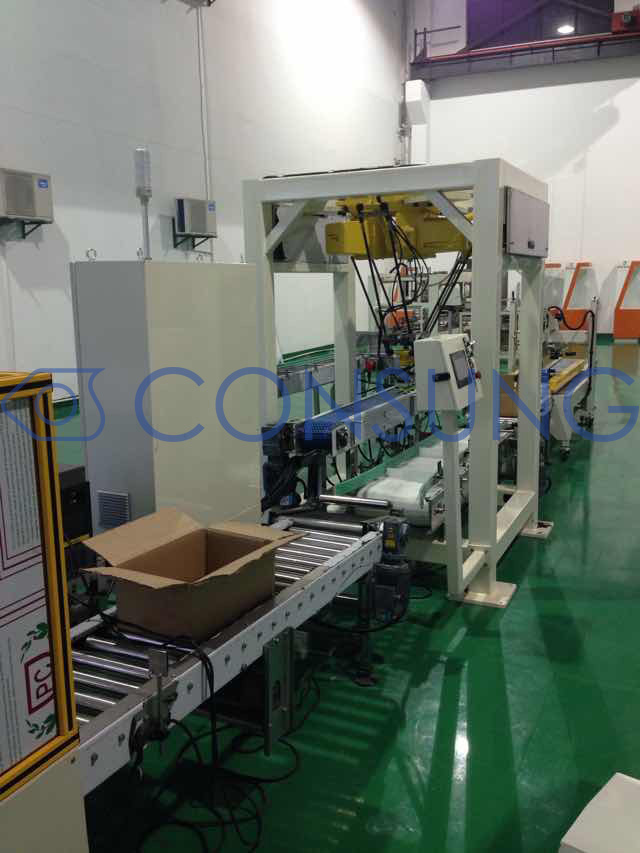

This flexpicker robot carton packer is designed for our Australia customer, which for stand up pouch bag product, following is for our customer whole packing system picture from case erector, flexpicker carton packer and case sealer for your reference.

Case

Name: Robot Flexpicker Carton Packer for Stand up Pouch 1SET Case Erector with bottom sealing machine 1SET Case Sealer 1 SET

Country: Australia
Industry: Stand up pouch water
Details: Our whole packing system: first open carton, second pick up pouch into carton by flexpicker, finally seal carton

Name: Robot Case Packer 2 SET Carton Erector with bottom Sealer machine 2 SET Auto Carton Sealer 2 SET
Country: Argentina
Industry: Personal Care
Details: Our 2 whole packing system is for 2 kinds bottles 200ml and 400ml bottle, 2*6 packing arrangement, 200mml with capacity 120bottles/min and 400ml bottles with capacity 100bottles/min
