How to Adjust a Hot Melt OPP Labeling Machine for Different Bottle Sizes

Adjusting a hot melt OPP labeling machine to accommodate different bottle sizes is a crucial aspect of maintaining efficiency in a carbonated drink production line. As an engineer with extensive experience in managing and optimizing our hot melt glue labeling machines, I'll guide you through the step-by-step process of making these adjustments to ensure your production line remains versatile and efficient. This process is essential for businesses that package their products in various bottle sizes and require a seamless transition between runs.

Understanding the OPP Labeling Machine

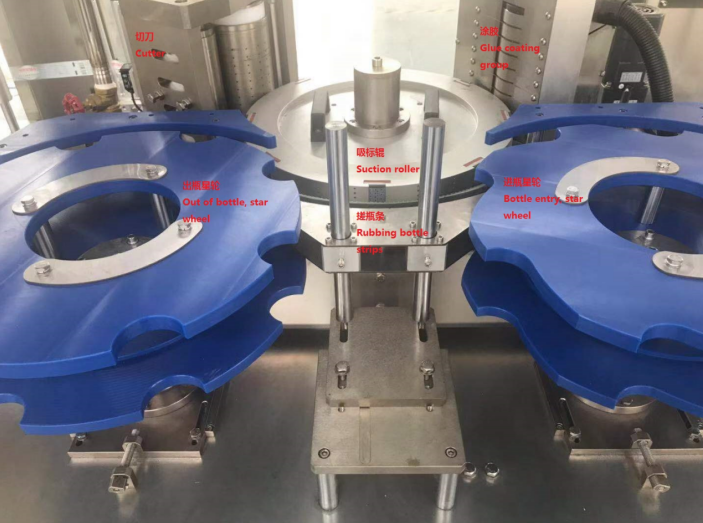

Before diving into the adjustment process, it's important to understand the components of a hot melt OPP labeling machine. These machines typically consist of a label magazine (where labels are loaded), a glue roller or nozzle (applying hot melt glue), a vacuum drum (sucking labels in place), and a bottle indexing system (positioning bottles for labeling).

Step 1: Adjusting the cutting knife group

Adjust movable and static knife: Ensure the machine is turned off and properly locked out to prevent any accidental startups during the adjustment process. The cutting knife group cuts off the label and feeds the label to the suction roll. The clamping label is impacted by the moving knife and the static knife, and then the label is stably transported to the suction roll by the combination of suction and blowing. the static knife adjusts the angle and the level of the movable knife by screw to ensure that the whole knife can cut off the label as far as possible.When the level of the stationary cutter and the moving cutter is horizontal, the impact force between the moving cutter and the stationary cutter is adjusted by changing the angle of the stationary cutter roll.

Step 2: Adjusting the Bottle Indexing System

Adjust the Guides: The bottle indexing system has guides that align the bottles before labeling. Loosen the locking mechanisms and slide the guides to accommodate the width of the new bottle size.

Tweak the Timing: Adjust the timing of the indexing system if your machine is equipped with a programmable logic controller (PLC). This ensures that bottles are released into the labeling station at the correct intervals.

Step 3: Modifying the Label Magazine

Width Adjustment: Change the width of the label magazine to fit the width of the new labels. This might involve sliding the magazine walls apart or together and locking them in place.

Feed Adjustment: Adjust the label feed mechanism to ensure smooth delivery of labels to the glue roller or nozzle.

Step 4: Adjusting the Glue Application：Melt the glue and apply it evenly on both ends of the label.

Glue Roller/Nozzle Position: Adjust the position of the glue roller or nozzle to align with the new label's glue strip. This might require lateral movement or adjusting the height for optimal glue application.

Glue Temperature and Volume: Check and adjust the glue temperature and volume as needed. Different label sizes might require slight adjustments to these settings to ensure a consistent and secure bond.

Step 5: Vacuum Drum Adjustment

Drum Size: If your machine uses different vacuum drum sizes for different bottle sizes, change the drum to match the new bottle size.

Suction Timing: Adjust the suction timing to ensure the label is picked up and held securely by the vacuum drum until it's applied to the bottle.

Step 6: Final Checks and Testing

Check All Locking Mechanisms: Ensure all adjustments are securely locked in place to prevent shifts during operation.

Load Labels and Bottles: Load the new labels into the magazine and place a batch of the new bottle size on the conveyor.

Test Run: Conduct a test run to check for any issues with label placement, glue application, or bottle handling. Make any necessary tweaks.

Conclusion

Switching bottle sizes on a hot melt OPP labeling machine requires attention to detail and a thorough understanding of the machine's components and functions. By following these steps, you can ensure a smooth transition between different bottle sizes, maintaining high efficiency and product quality in your carbonated drink production line. Always remember to prioritize safety, consult the machine's manual for specific instructions, and perform test runs to validate settings before starting full production.
